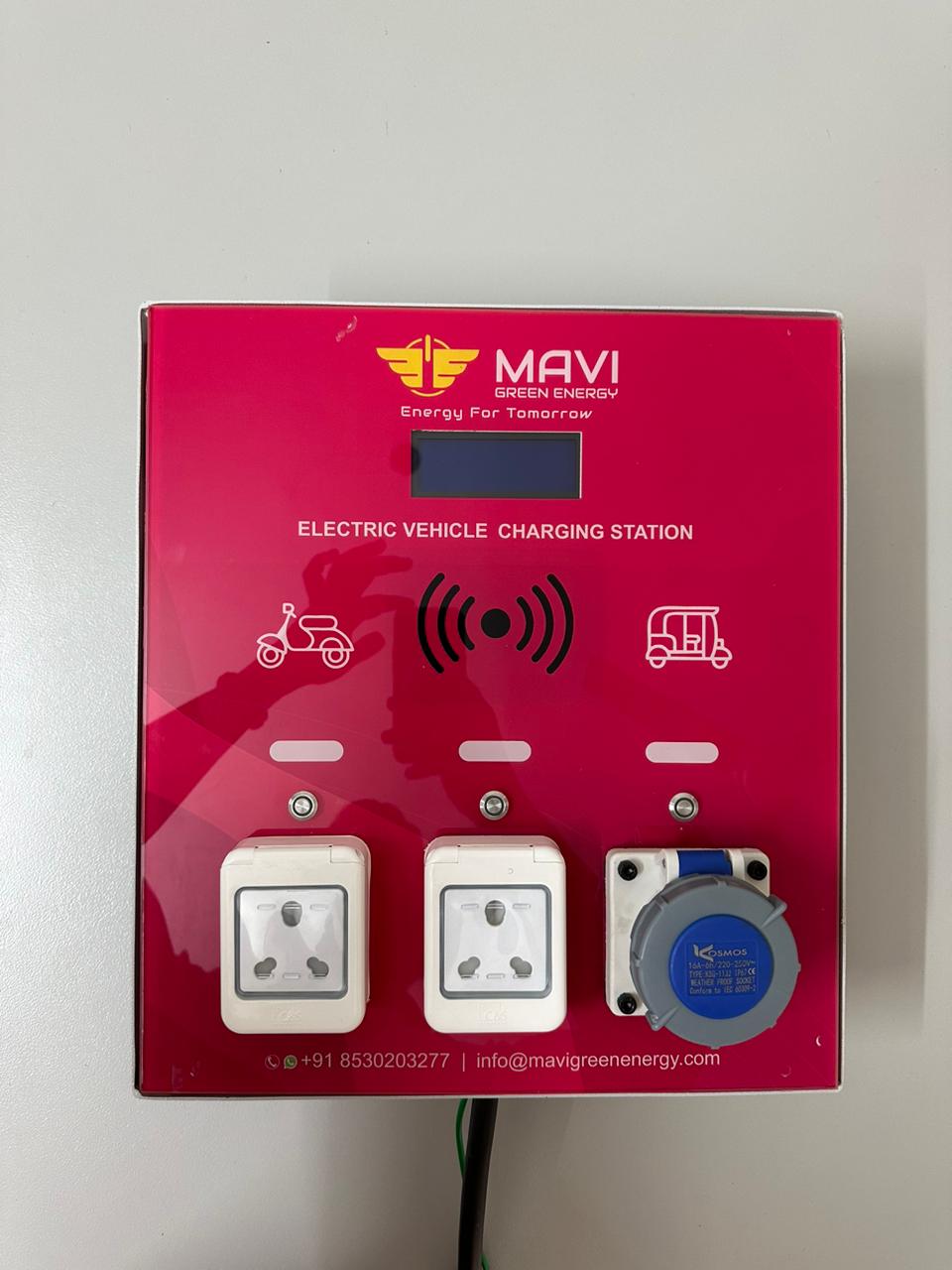

MAVI-3K3-BAC-3S-C

PARAMETER SPECIFICATION

Model Series - JADE PLUS
Model Number - EVCS 3.3kW * 3

INPUT

Input Supply - 3 Phase 400-415V AC @ 15A Each Phase
Input Frequency - 50Hz ± 1.5 Hz
Input Wires - 5 wires - L1,L2,L3,N,PE
Battery Backup (Controller) - Battery back-up upto 1 hour for the CSMS to synchronize data logs for billing

OUTPUT

No. Output Connector - 3 Sockets
Power Output - 3.3kW Max. per output
Output Connector Type - IEC 60309, (3 Pin Female Connector)

USER INTERFACE

Display - 20 X 4 - character LCD
SIM Slot - General size SIM card For GSM connectivity
Push Button - Push button for Start / Stop session for each socket LED Indication - Multicolour LED indication for charging status

COMMUNICATION

EVSE to Server - OCPP 1.6
Cloud Connectivity - WiFi, 3G/4G
User Authentication - RFID Enable, Mobile App

SAFETY AND PROTECTION

Safety Measures - Emergency Stop Button
Protection - Over voltage, under voltage, over current, short circuit, surge protection, over temperature, ground fault, residual current
MCB current breaking rating - 25A for a 16 Amp rated Charger
Earth (ground) fault protection - Leakage current < 30mA

ENVIRONMENTAL

Operating temperature - 0^oC to + 55^oC
Operating Humidity - 5 to 95% relative humidity, non-condensing

MECHANICAL

Dimensions - (HxWxD) 670mm x 333mm x 165mm
Material - MS - CRCA
Cooling - Natural Air Cooled
Net Weight - 13 Kg
Mounting Type - Wall Mount, Pole Mount
IP rating - IP 54

STANDARD

Compliance - AIS - 138
